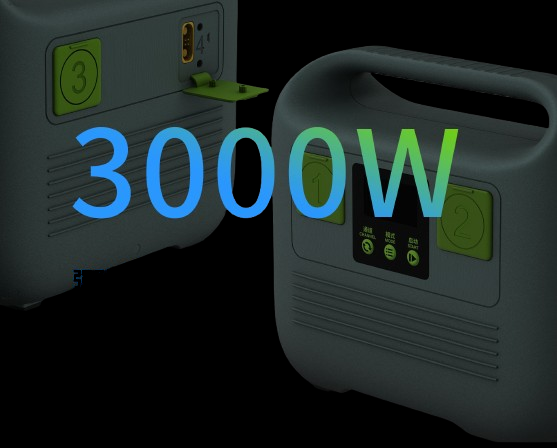

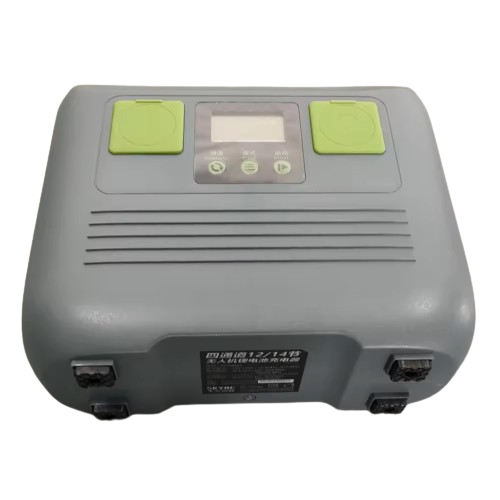

3000W Drone Fast Charger for LiPo LiHV Batteries PC3000H

The PC3000H drone fast charger is an intelligent charger equipped with CAN communication and a battery balancing port. This charger supports mainstream smart batteries as well as ordinary lithium batteries, and can simultaneously charge up to 4 batteries. With a maximum output power of up to 3000W, the charger offers four modes for users to choose from: fast charging, standard charging, slow charging, and maintenance. It can automatically recognize and charge batteries independently, featuring simple and convenient operation, thereby providing users with a superior experience.

SKU: PC3000H
Battery Type: LiPo / LiHV Battery (12S, 14S)
Input Voltage:100~240V
Output Power: AC 20~240V 2500W, AC 100~180V 1200W
Discharge Power: 60W
Charging Mode：Fast Charging, Standard Charging, Slow Charging, Preserving Mode
Charge Current: Fast charging 60A, Standard charging 30A, Slowing Charging 20A
Charge channel：Four Channels
Size: 294 x 135 x 200 mm (11.57″ x 5.31″ x 7.87″)
Weight：6kg

Compatible with Most Drone Batteries

* Universal Drone Battery Charger

The PC3000H universal drone battery charger is suitable for charging most drone batteries. It’s compact, stable, durable and portable.

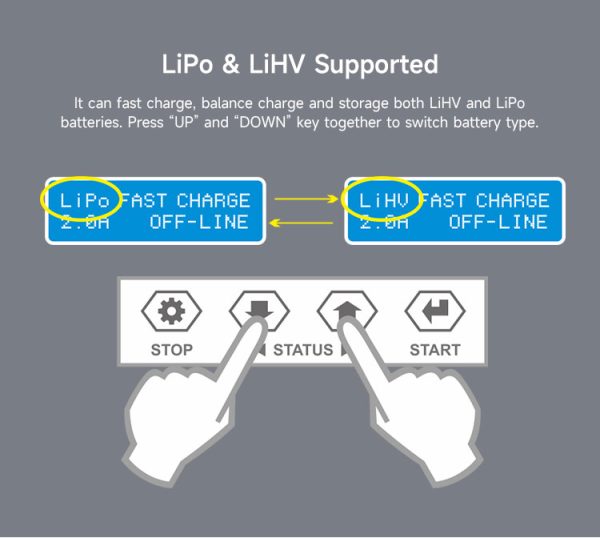

* LiPo/LiHV Battery Supported

The PC3000H drone charger supports fast charging, balanced charging and storage charging for LiPo and LiHV batteries. Simply press the up and down buttons simultaneously to switch the charging mode.

High Performance on Four Channels

A 16000 mAh battery can be fully charged in 15minutes: charging time is saved significantly and charging efficiency is improved. With high power on four channels, four batteries can be charged simultaneously in slow charge mode at a maximum charging power of 2500W with the AC input 220V.
*If the voltage is lowered to 120V, the power will be reduced to no more than 1200W.

Battery Life Extended with Pre-charge

The charger can detect the battery pack’s overall voltage through the balance port and intelligently adjust the charging current according to the battery voltage

Sand, dust, and Overheating Prevention

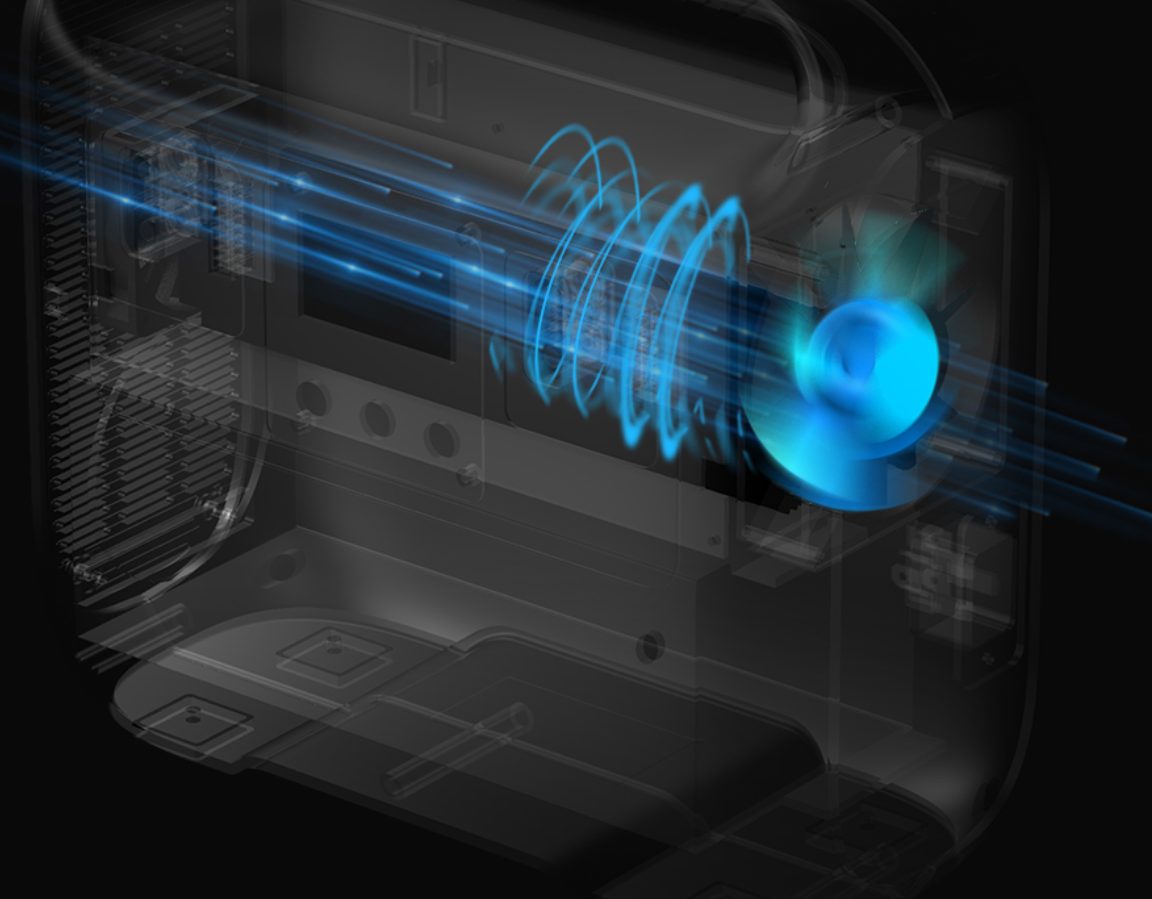

* Convection Air Duct
The wing blade design reduces noise provides high-wind performance, and significantly improves heat dissipation efficiency.

* Effectively Filtering Dust and Sediment

Ventilators are mounted at the end of the fan convection. They are detachable which are easy to remove and clean: dust, sand, and other harmful substances are effectively filtered.

People Who Viewed This Also Be interested in

Drone Charger PC1080

Drone Charger PC2500

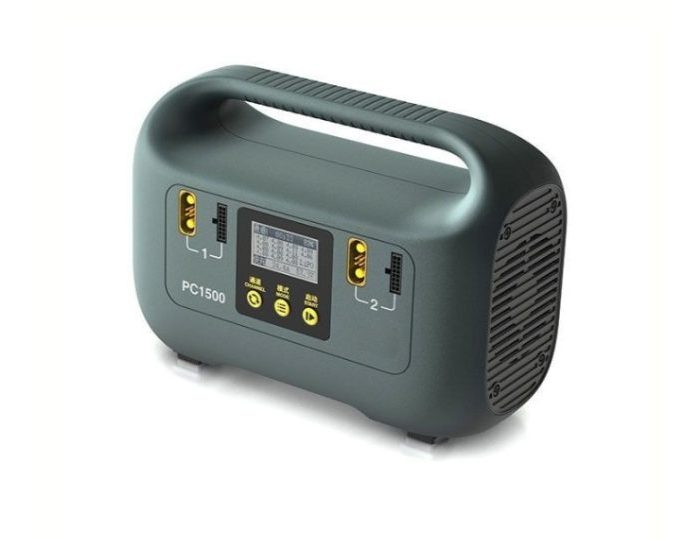

Drone Charger PC1500

More Information About Drone Battery Charger PC2500

How long does it take to fully charge a drone battery?

The charging time depends on the battery capacity and the charger’s output power. Typically, it can range from a few minutes to 20 minutes.

Can I use a regular phone charger to charge my drone battery?

No, you should use the dedicated charger provided with the drone or a compatible charger specifically designed for drone batteries.

Is it safe to leave the drone battery on the charger after it's fully charged?

It’s not recommended. Overcharging can reduce the battery’s lifespan and pose a safety risk.

Can I charge multiple drone batteries simultaneously with one charger?

Yes. The PC3000H can charge 4 12-cell or 14-cell batteries with the help of two G630 charging managers.
