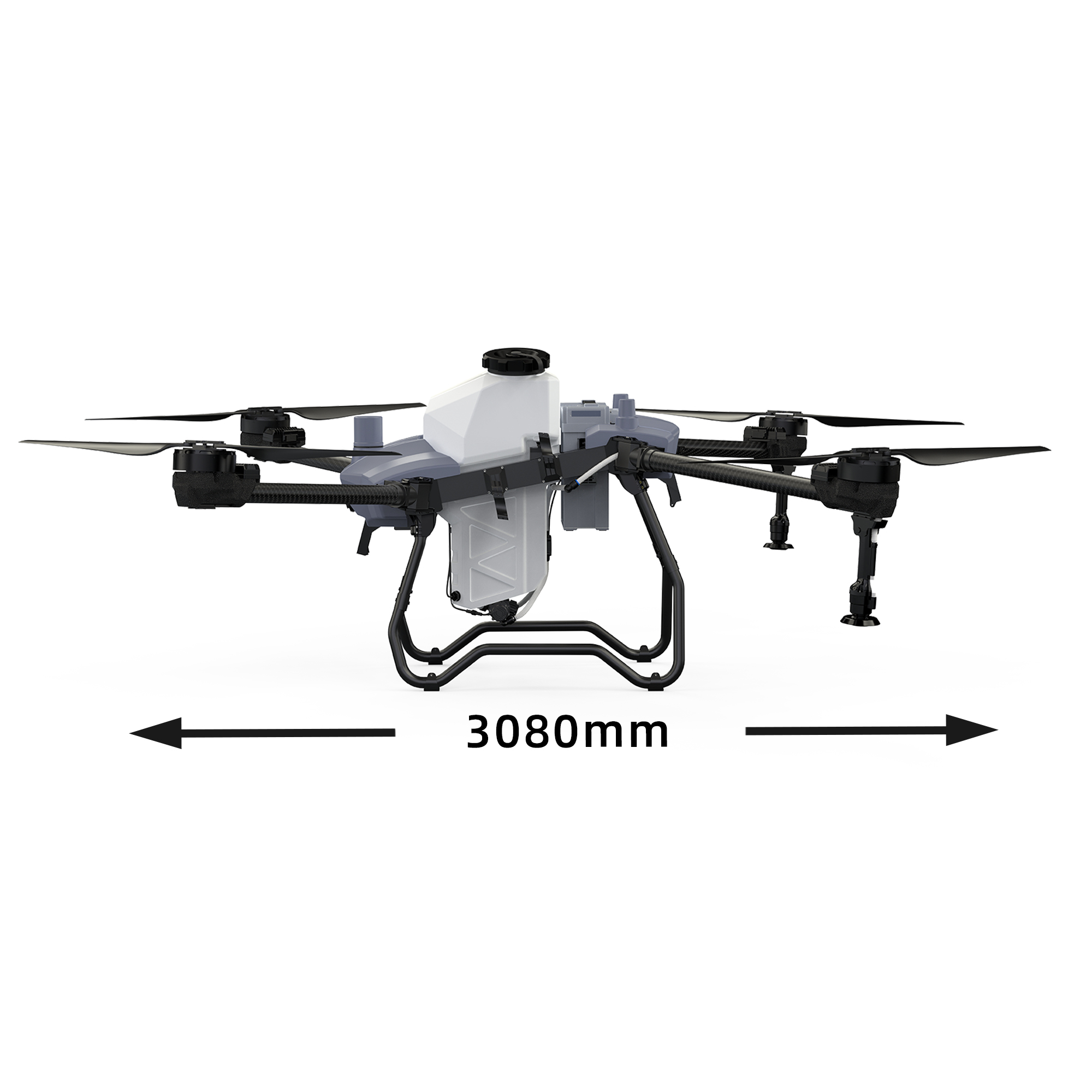

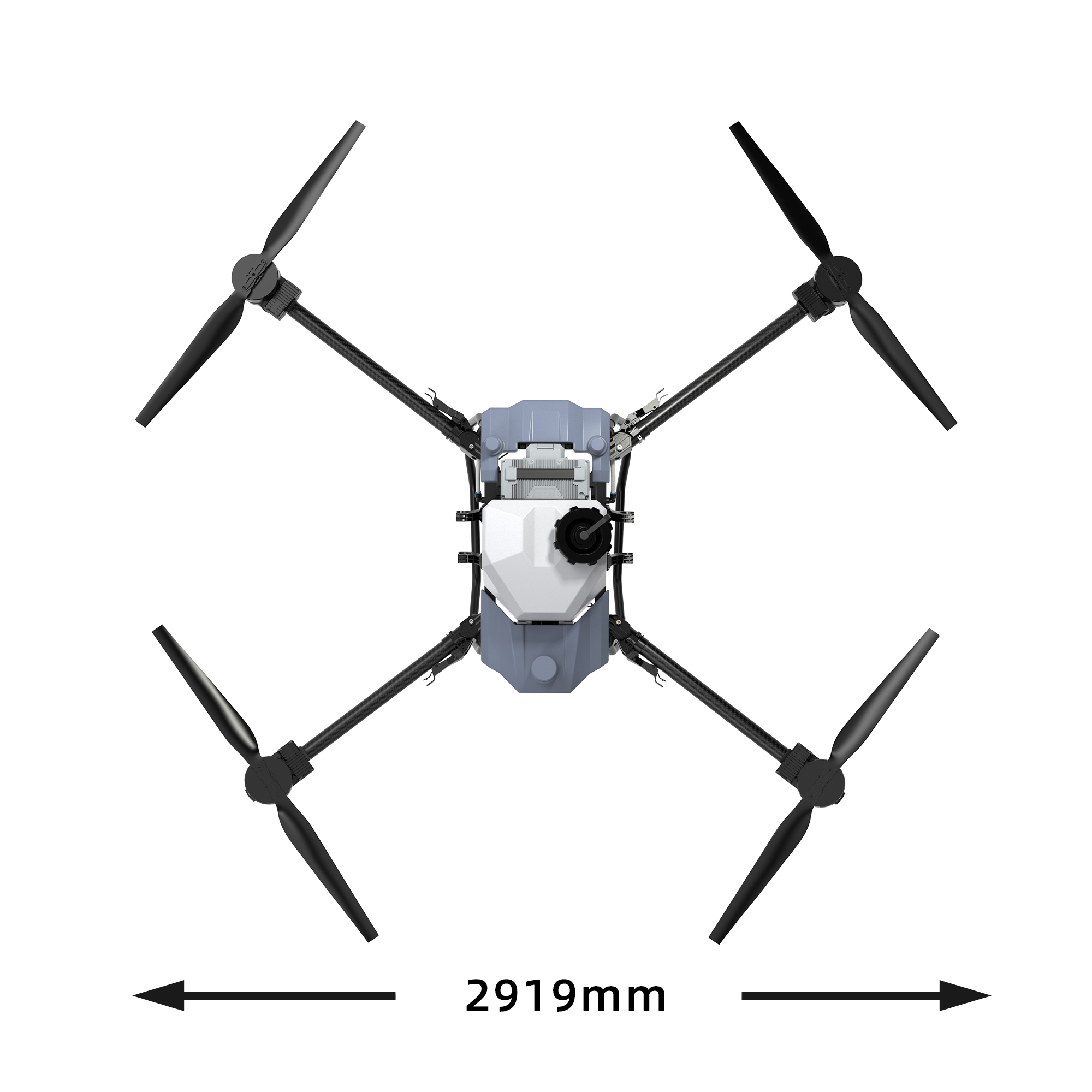

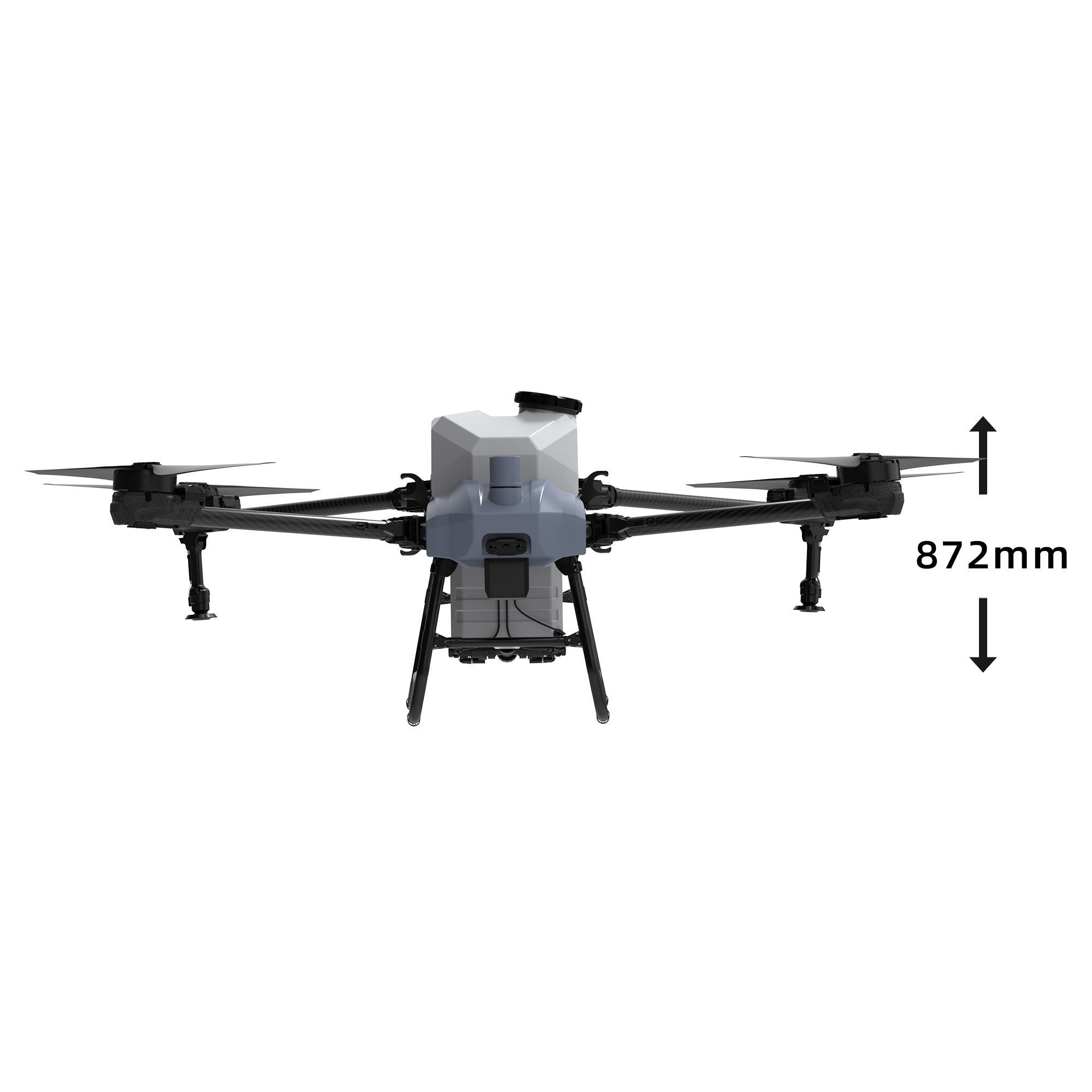

50L Obstacle Avoidance Agricolas Spray Drone M50
The agricultural drone M50 is an unmanned aerial vehicle specifically designed for spraying and seeding operations in fields and orchards. It aims to improve pesticide utilization, reduce pesticide usage, enhance operational efficiency, and increase crop yields. It is widely used for crops such as rice, wheat, corn, potato, soybean, tea, citrus, apple, cherry, cotton and sugar cane, addressing the challenges of extensive operational areas and labor-intensive tasks across various terrains in fields and orchards.
Heavy Payload
Mecho M Series agriculture drones come in two load capacities: 30kg and 50kg, meeting various agricultural operation requirements. The M50 agricultural drone, with a 50kg payload capacity, features a high-strength truss frame and a snap-lock structure, ensuring safer and more stable operation.
50kg Heavy Payload
High-Strength Truss
Snap-Lock Design
Large Flow Rate & High Efficiency
The M50 agricultural drone is equipped with a bilateral large-flow impeller pump, which can achieve ultra-large flow operations of up to 24L/min. At the same time, it is equipped with an ultrasonic flow meter sensor and liquid separation detection, which makes the drone more stable and accurate while performing efficient spraying operations. The M50 agricultural drone has a water-cooled centrifugal nozzle, which can effectively reduce the temperature of the motor electronic adjustment and increase its service life by 70%. Its built-in high-precision weighing module can automatically calibrate and weigh in real time, which greatly improves the sowing progress and saves up to 75% of losses. The spraying particle size range of the M50 drone can be as small as 30 microns, making spraying and sowing operations more uniform, more efficient and less costly.
Flow Rate Up to 24L/min
Losses Reduced by 75%
Service Life Extended by 70%
Smart Route Planning & Autonomous Flying
The M50 agricultural drone features an intelligent flight route mode, which can provide arbitrary polygonal flight route planning for both regular and irregular terrains. It is capable of precisely calculating the spraying area, thereby assisting operators to more accurately control the dosage of pesticides. Meanwhile, it is equipped with a continuous liquid level gauge, enabling real-time monitoring of the remaining pesticide volume, predicting the point for refilling, and achieving the optimal match between the pesticide volume and battery power. The M50 also has a flight route memory function. When the drone finishes replenishing the pesticide, it can return to the point where the supply ran out and complete the remaining spraying operation.
Intelligent Route Planning
Autonomous Flying
Real-Time Pesticide Monitoring
Diverse Operation Modes
The M50 agricultural drone can be manually controlled or intelligently operated. It comes with multiple operation modes to adapt to different shapes and terrains of operation scenarios. Besides the automatic flight mode with intelligent route planning, the M50 agricultural drone also has two other modes: AB-T mode and edge-sweeping mode. The AB-T mode adjusts the angle of points A and B when the drone marks points to change the drone’s flight route, in order to adapt to more complex-shaped plots. As to the edge-sweeping mode on the drone, you can set the number of circles for the edge-sweeping flight operation. At the same time, you can also make overall and single-side indentations for the edge-sweeping route, and set parameters such as flight speed and spraying width. The M50 drone adopts U-shaped turns. Because the U-shaped turn has a small angle, it enables smoother flights and more efficient operations.
Smart Mode
AB-T Mode
Edge-Sweeping Mode
All-Around Obstacle Avoidance
The M50 agricultural drone is outfitted with a omnidirectional radar. This remarkable feature allows it to have all-round perception capabilities and enables it to avoid obstacles in all directions. As a result, the safety of its operation has been significantly enhanced in an all-round manner.
For instance, when encountering complex environments such as trees, power lines, or sudden changes in terrain during its operation, the omnidirectional radar of the M50 can promptly detect these obstacles and guide the drone to take evasive actions, effectively preventing potential collisions and ensuring the smooth progress of agricultural operations. This advanced technology not only protects the drone itself from damage but also reduces the risk of property loss and potential safety hazards to personnel in the operation area.
Optimized Design
The M50 agricultural drone adopts a distinctive front-high and rear-low design, which can effectively reduce wind resistance and increase the battery life by 10%. The Z-shaped folding frame design can reduce the storage volume by 15%, facilitating the transportation of the drone. Moreover, the M50 drone utilizes a grouped modular design. The flight control module, RTK module, and receiver module can be plug-and-play and flexibly configured as needed. Additionally, it is equipped with a night flight function, enabling the drone to operate safely at night. The drone is paired with multiple batteries. The batteries can be charged slowly or quickly. Slow charging only takes 20 minutes, while fast charging only takes a few minutes.
Wind resistance reduction design
Detachable Modulars
Night Flight Function
Fast Charging

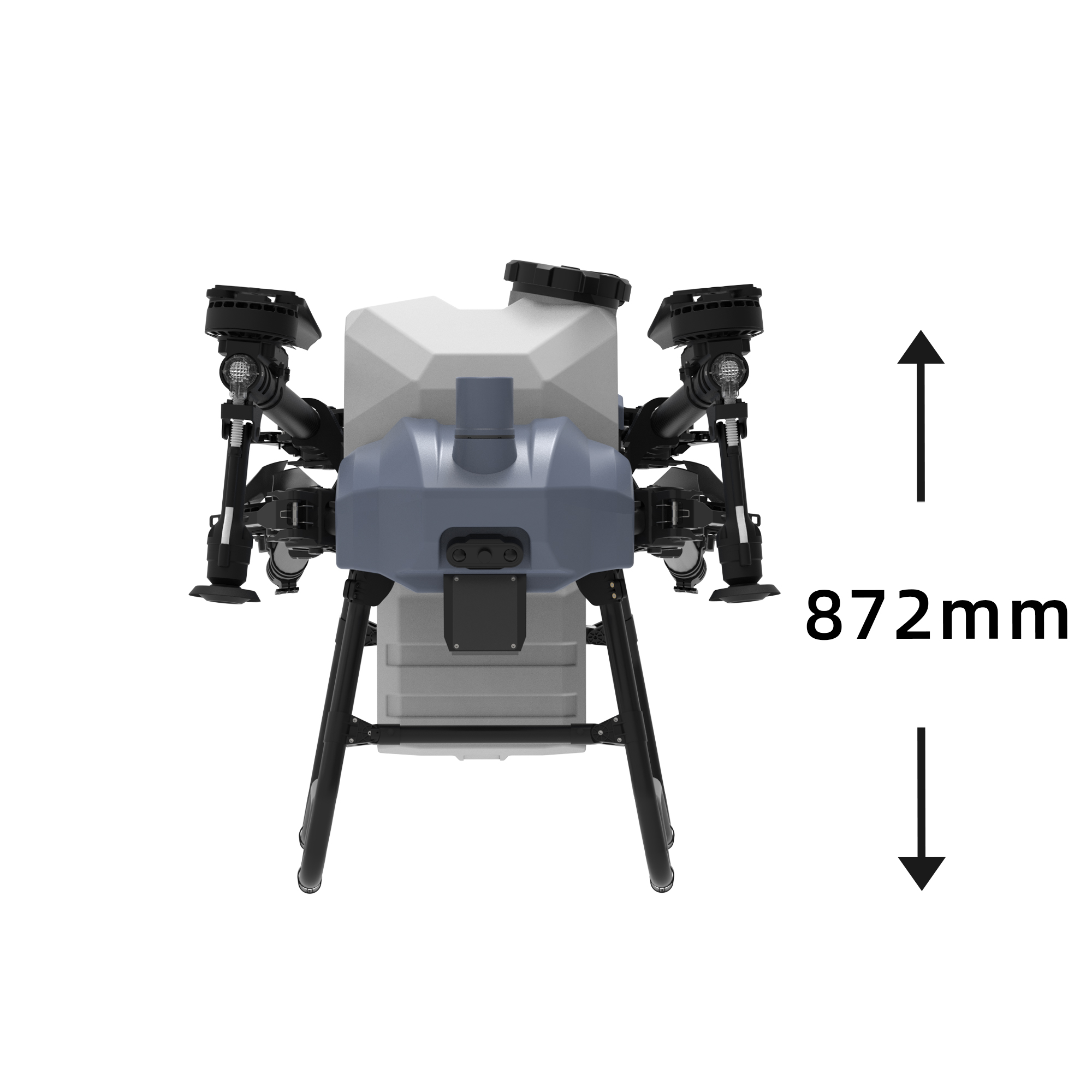

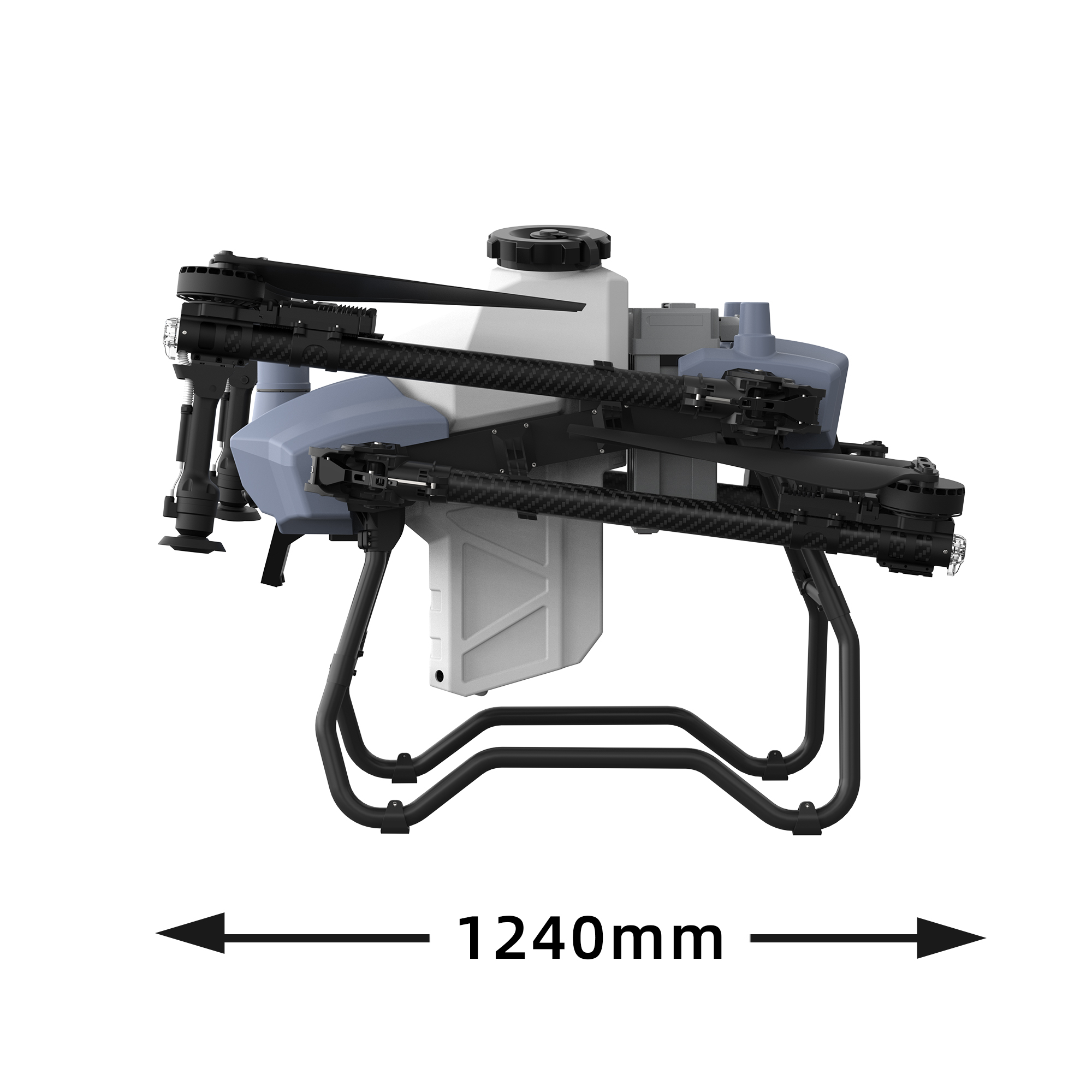

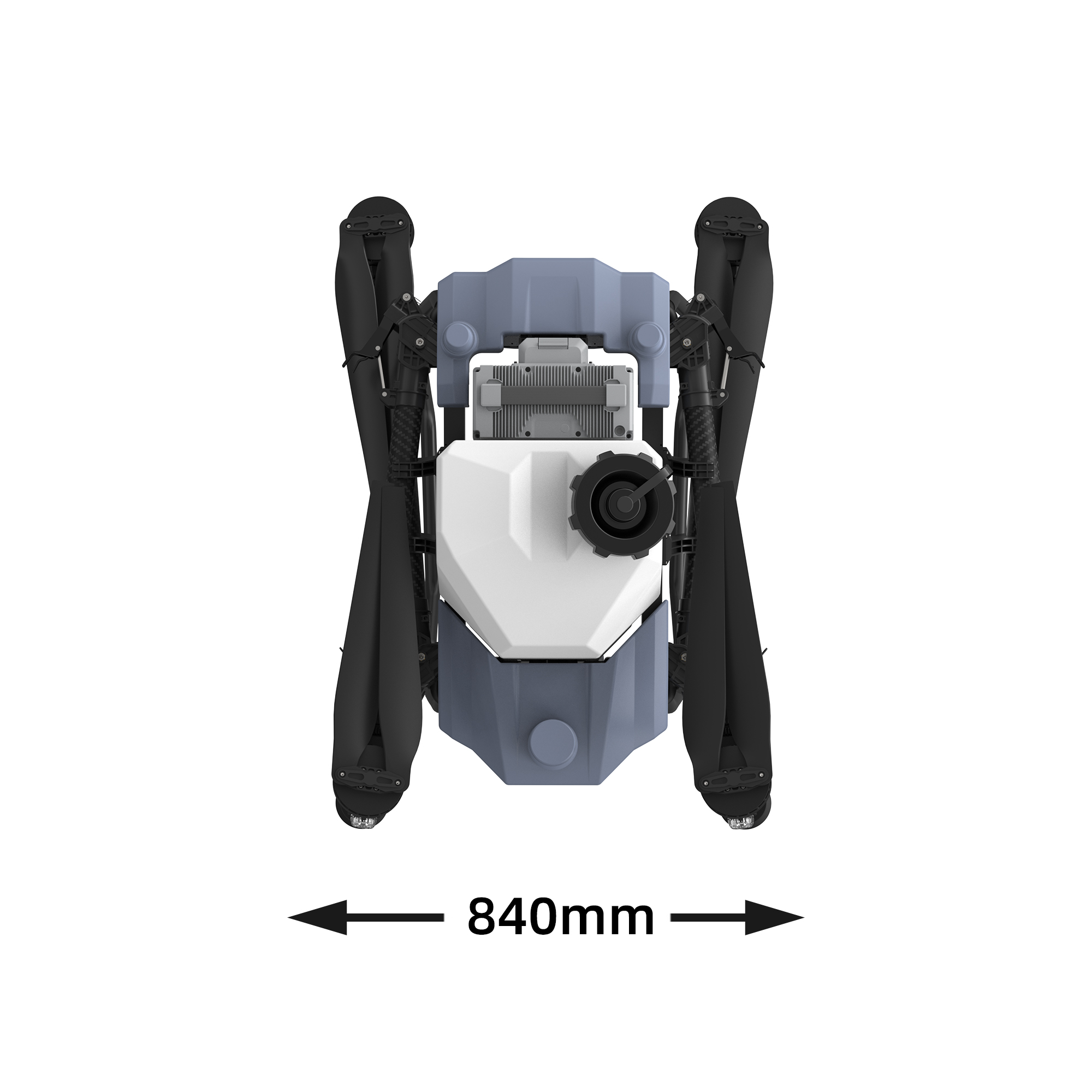

Compact Folding Frame
