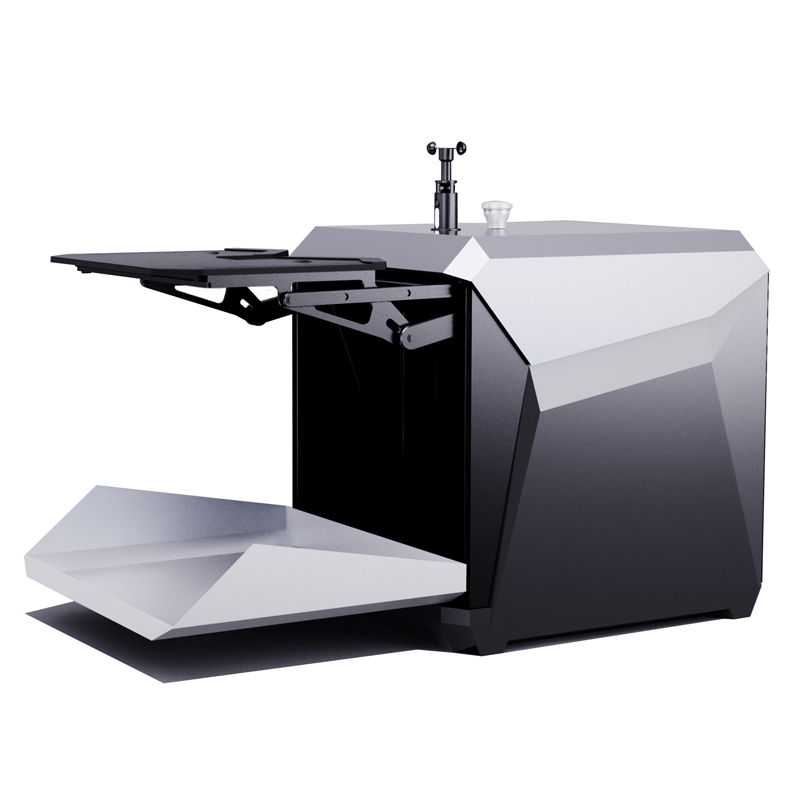

Drone Dock M710
The M710 is customized for the C60 drone, integrating meteorological monitoring. It realizes functions like automatic takeoff, autonomous inspection, visually guided landing, automatic battery swapping, and rapid data reading. The fully automatic flight system, composed of the C60 drone and the M710 base station, can easily handle application scenarios such as all-day, high-frequency, and multi-task operations.
The intelligent docking station provides customers with safe, efficient, and uninterrupted intelligent inspection services. It can achieve functions such as automatic takeoff and landing of drones, automatic charging and battery swapping, and automatic operation without human attendance. It is equipped with an industrial-grade three-dimensional monitoring, a constant temperature, and a meteorological system to comprehensively ensure the stable operation of the base station and drones. It has the integration technology of RTK positioning and visual recognition system, making takeoff and landing more precise.
Drone Docking Station
SKU: M710
Compatible to: C60 Inspection Drone
Input Voltage: AC 198V ~ 235V, 50Hz
Input Current: 10A
Input Power: 2200W, MAX.
Operating Temperature: -20°C ~ 50°C
Operating Humidity: <95%RH
Protection Rating: IP55
Weight: 411kg (906lbs, without drone and battery)
Docked Drones: 1
Batteries: 8
Max. Wind Speed of Landing: 6m/s
Max. Operating Radius: 8km
Dimensions with Lid Open: 2040mm x 1143mm x 1290mm (80.31″ x 45″ x 50.79″)
Dimensions with Lid Closed: 1185mm x 1143mm x 1290mm (46.65″ x 45″ x 50.79″)
Best Match with C90

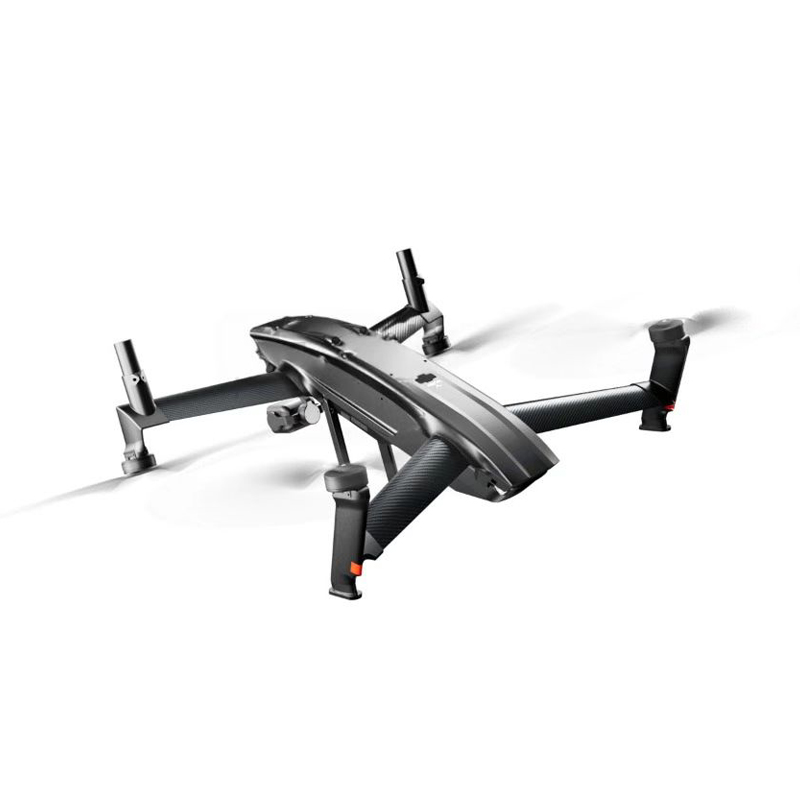

With the advantages of both fixed-wing and multi-rotor drones, C60 inspection drone is perfectly matched with the M710 docking station and UAV cloud system, to accomplish the automatic flight experience.
The C60 has six-sided binocular and infrared sensors for 360° awareness, a 25-meter detection range, and dual RTK plus visual recognition for accurate navigation. Powered by an intelligent AI Brain with a 21 TOPS edge computing module, it supports front-end recognition. The dual image transmission redundancy link, covering multiple frequencies and 5G/LTE, ensures stable data flow. With IP45 protection, it can operate from -10°C to 45°C, and high-altitude propellers expand its reach. A built-in intelligent parachute boosts safety in complex terrains. Its carbon fiber and PA66 + glass fiber build, along with advanced crafting, ensures durability. Finally, the NV3 Imaging System, with a quick release mount, excels at full-color, multi-application photography, making the C60 ideal for diverse inspection tasks.
Have more questions? Need a price quote or want to become a dealer?
People Who Viewed This Also Be interested in
More Information About Drone Dock
The main functions of the drone dock include providing a safe parking place for drones. It can charge drones or replace batteries. Some also have functions such as data transmission and preliminary data analysis. This enables drones to be quickly put into the next mission and improves operational efficiency.
MECHO drone dock has a sturdy structure and protective design that can resist certain external forces and adverse weather conditions. It has waterproof, dustproof, and wind-resistant properties. At the same time, it is equipped with a safety lock or monitoring system to prevent drones from being stolen or accessed by unauthorized personnel.
Daily maintenance includes regularly checking the integrity of the structure to ensure good protective performance; cleaning the dust and debris on the surface of the drone dock to prevent affecting the takeoff and landing of drones and equipment performance; checking the normal operation of charging equipment and data transmission interfaces to ensure no poor contact and other issues; also check related electronic equipment and control systems, such as checking battery status and whether the circuit is normal.
