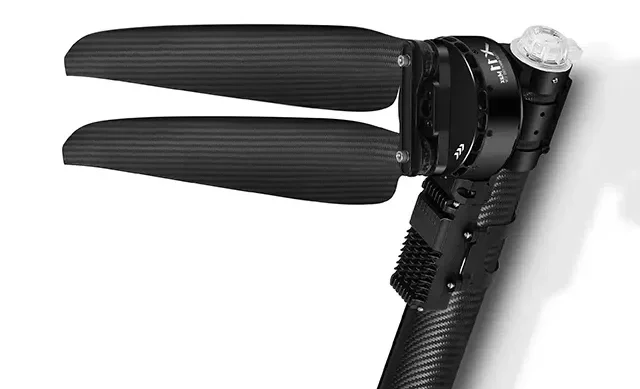

Drone Brushless Motor Propeller ESC Power System X11
MECHO drone power system is a cutting-edge solution designed to enhance your drone’s performance. It features high-efficiency motors that deliver powerful thrust, enabling stable and agile flight. The electronic speed controllers offer precise control over the motor’s speed, ensuring smooth operation. The power system also comes with multiple protection mechanisms to safeguard your drone during flight. Whether for aerial photography, surveillance, or other applications, our drone power system is a reliable choice for seamless and efficient drone operations.
SKU: X11
Propeller: 480mm x 175mm (18.9″ x 6.89″), Carbon Fiber.
Max Thrust: 44kg/Rotor (70V, Sea Level)
Protection Rating: IPX6
Operating Temperature: -20℃ ~ 50℃
KV Rating: 60rpm/V
Battery: 18S LiPo Battery
Stator Size: 111mm x 22mm
Tube Outer Diameter: 50mm
Max Input Voltage: 78.3V
Max Input Current: 150A
Weight: 2.8kg
Maximum Efficiency & Stability
At the heart of our power system is a high-performance brushless motor. These motors are known for their durability, low noise, and high power output. They provide the thrust needed to lift the drone and keep it in the air, even in challenging wind conditions. The motors are carefully matched with optimized propellers to ensure maximum efficiency and stability.
Safe and Reliable Flight
The electronic speed controller (ESC) plays a vital role in regulating the motor’s speed and power. Our ESCs are designed with precision and reliability in mind. They offer smooth and accurate control, allowing for precise maneuvering and stable flight. With advanced features such as overcurrent protection, overheating protection, and low-voltage cutoff, the ESC safeguards the motor and battery, ensuring a safe and reliable flight experience.
CAN + PWM Dual Throttles
The drone power system uses a dual-throttle design of CAN digital throttle and PWM analog throttle. The signals are mutually backed up and supplemented to ensure signal quality. In complex environments, the drone’s attitude remains stable and it can fly smoothly.
Smart Protection System
The drone power system has multiple protection mechanisms, including throttle signal loss protection, overcurrent protection, stall protection, voltage protection, etc., to ensure stable and safe flight.
