Power system integrity and maintenance are vital for uninterrupted electricity supply. Power inspection is thus crucial. Traditionally, it depended on manual work. Inspectors walked along lines, climbed towers, visually checked equipment. It was time-consuming, labor-intensive, and risky. Human factors like fatigue also affected accuracy.
Drone technology has transformed power inspection. Drones access tough areas easily. With advanced sensors, they capture detailed data from all angles for accurate and comprehensive checks, spotting faults early. They’re efficient, covering large areas fast, and can be scheduled. Fewer human inspectors and vehicles are needed, cutting costs and enhancing efficiency.
Main Challenges in Power Inspections
Limitations of Manual Inspection

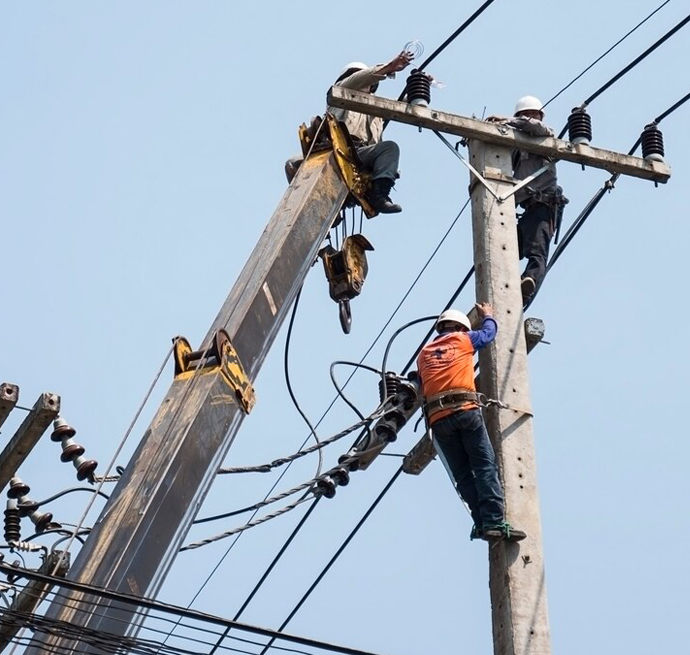

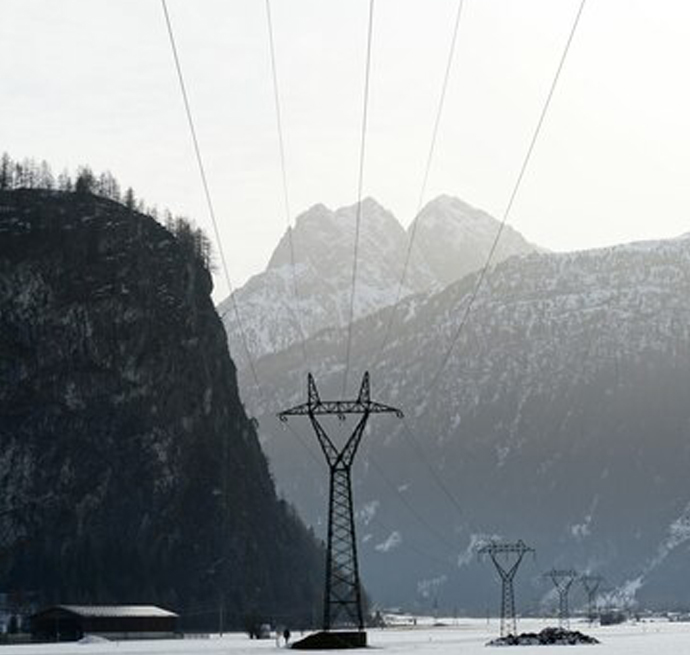

Manual inspection in power systems often requires a lot of manpower and time. Inspectors need to cross complex terrain, climb towers, and enter confined spaces, which not only poses risks to personal safety, but may also lead to incomplete or inaccurate inspections due to human factors such as fatigue and visual errors. For example, in some mountainous or forested areas where power lines pass through, it is extremely difficult and time-consuming for inspectors to reach every inspection point on foot.
Inefficient data collection and analysis
The traditional method of collecting inspection data is mainly through on-site records and simple measurement tools. This leads to a lack of systematization and standardization in data collection. Moreover, the subsequent analysis of a large amount of data is often labor-intensive and may result in delayed discovery of potential problems. For instance, when analyzing the images and records of insulator inspections, it is hard to quickly and accurately identify subtle damage or performance degradation with the naked eye or basic image processing software.
Lack of Real-time Monitoring Capability
Most power inspections are carried out periodically, which means that problems that occur between inspection intervals may not be detected in a timely manner. There is a lack of an effective real-time monitoring mechanism to continuously track the status of power equipment and lines. For example, if a transmission line suddenly fails or changes abnormally due to external factors such as bad weather, it may not be immediately known, which may cause serious consequences such as power outages.
High Cost and Low Resource Utilization
The combination of a large number of inspection personnel, special equipment, and vehicle deployment makes the cost of power inspection relatively high. At the same time, due to the inefficiency of the inspection process, there is often a waste of resources. For example, a lot of fuel and manpower are consumed in the process of dispatching inspection teams to different locations, but the actual inspection results may not be proportional to the investment.
How Do Drones Solve These Problem?
Drones effectively solve the problems encountered in power inspections and present distinct advantages.
For manual inspection limitations, drones can access inaccessible regions effortlessly. They can hover around power towers in challenging terrains, eliminating the need for hazardous climbing. High-resolution cameras and sensors capture detailed images and data from diverse angles, minimizing human errors and fatigue, ensuring comprehensive and accurate inspections.
To address the problem of inefficient data collection and analysis, drones have advanced sensors and real-time data transmission that can help gather extensive data rapidly, and automatically process and analyze it. Image recognition and thermal analysis software can quickly identify anomalies, improving the speed and accuracy of data analysis.
Regarding the lack of real-time monitoring, drones can conduct regular patrols. Once they detect abnormal conditions such as increased temperature or foreign objects near power lines, they will immediately send an alarm to the control center, allowing for a quick response and reducing the risk of power outages.
In terms of high cost and low resource utilization, drones reduce the need for numerous inspectors and vehicle deployments. A single drone can quickly cover a large area, saving manpower and fuel costs, and the data collected can be shared among departments to optimize resource utilization and facilitate better coordination and decision-making.
What Can Drones Do in Power Inspections?

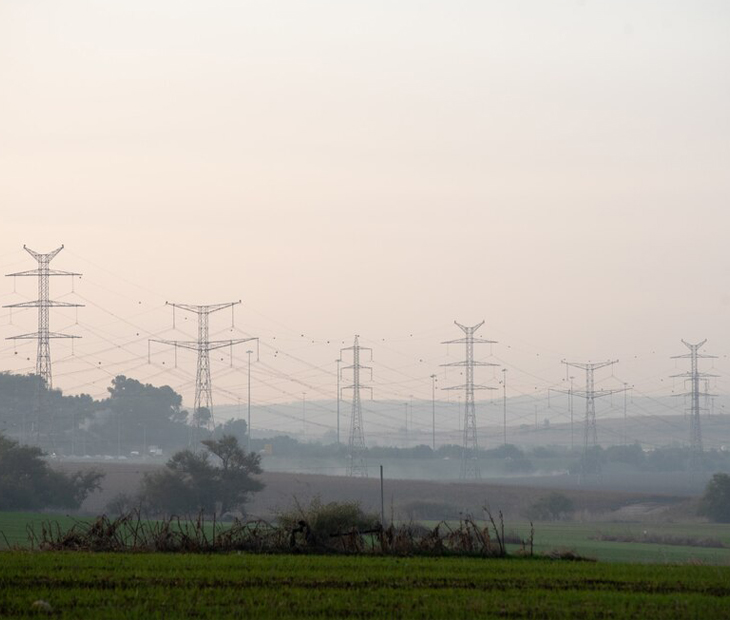

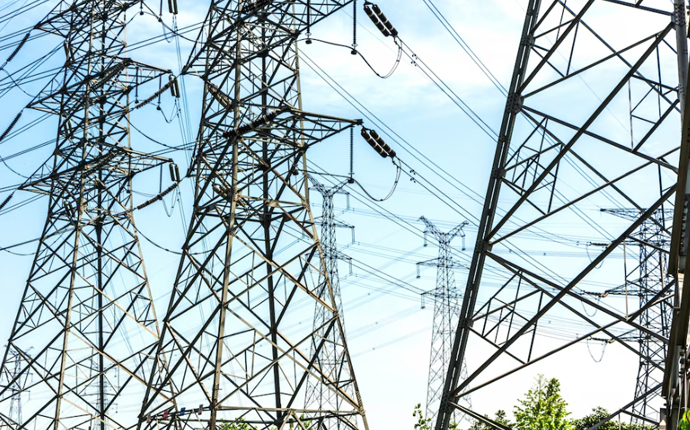

Power Line Inspection
Drones play a crucial role in power line inspection. Equipped with high-resolution cameras and infrared thermal imaging sensors, drones can fly along the transmission lines to conduct comprehensive inspections. They can accurately detect various defects such as insulator damage, wire breakage, and abnormal heating of connectors. The high-resolution visual images enable operators to clearly observe the surface conditions of the power lines and towers, including any signs of corrosion, cracks, or foreign object attachments. The infrared thermal imaging function helps to identify overheating components, which might indicate potential faults or energy losses. Through real-time data transmission, the inspection data and images are sent back to the control center immediately, allowing engineers to analyze and assess the situation promptly. Based on the inspection results, timely maintenance and repair plans can be formulated to ensure the safe and stable operation of the transmission network and minimize the risk of power outages.

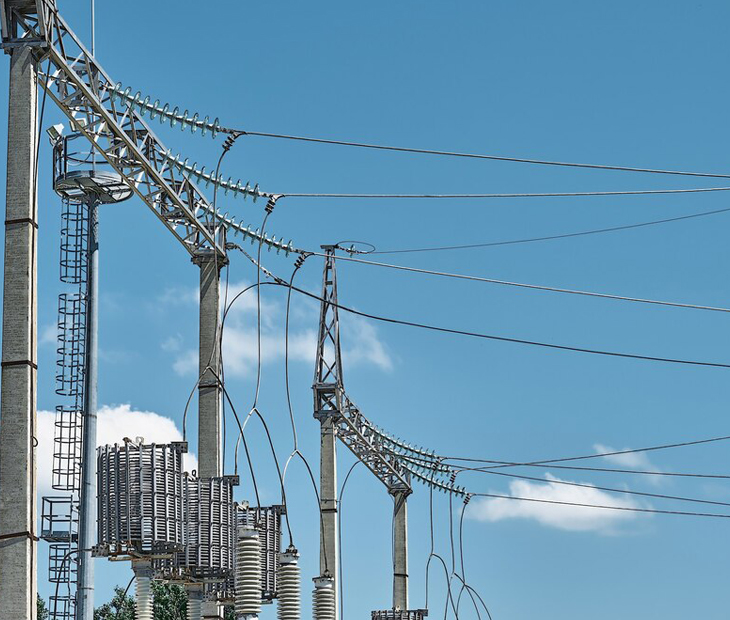

Substation Inspection
Drone inspection offers an efficient and accurate way to monitor the substation facilities. Drones can hover and maneuver around the substation area, using specialized sensors like ultraviolet detectors and gas sensors in addition to cameras. The ultraviolet detectors can detect corona discharge and partial discharge phenomena, which are often early signs of insulation degradation or equipment malfunction. Gas sensors are used to monitor the leakage of insulating gases such as sulfur hexafluoride (SF6) in gas-insulated switchgear. Visual inspections by drones can cover a wide range of equipment including transformers, circuit breakers, and busbars. They can check for oil leaks, abnormal vibrations, and loose connections. The collected data is analyzed to evaluate the overall health status of the substation. This helps in scheduling preventive maintenance activities, optimizing the operation and management of the substation, and enhancing the reliability and safety of the power supply within the substation area.
Power Distribution Inspection
Drones are highly effective in inspecting the complex and extensive distribution network. They can quickly cover a large area and access hard-to-reach locations such as the rooftops of buildings and the backyards of residential areas where distribution lines are located. Drones are equipped with a combination of visible light cameras and lidar sensors. The visible light cameras provide detailed images of the distribution lines, poles, and associated equipment, allowing for the detection of broken insulators, damaged conductors, and signs of vegetation encroachment. The lidar sensor creates a three-dimensional model of the surrounding environment, which helps in accurately measuring the distance between the drone and the inspected objects and mapping the layout of the distribution network. This data is used to plan maintenance routes, identify potential safety hazards, and improve the overall efficiency of the distribution system. By using drones for inspection, the time and labor required for manual inspections are significantly reduced, and the accuracy and comprehensiveness of the inspection are enhanced, leading to better service quality and fewer power interruptions for end-users.
How Can MECHO and Our Drones Help You?
Mecho provides unmanned power inspection solutions covering data acquisition, processing, analysis, and application. We integrate the intelligent drone station, geospatial intelligent algorithms, multi-functional sensors and so on to carry out intelligent inspections for power transmission, transformation, and distribution.
Liberate Manpower
Reduce Costs
Improve Efficiency
Cluster
Operation
One-Click
Inspection
Safe & Reliable

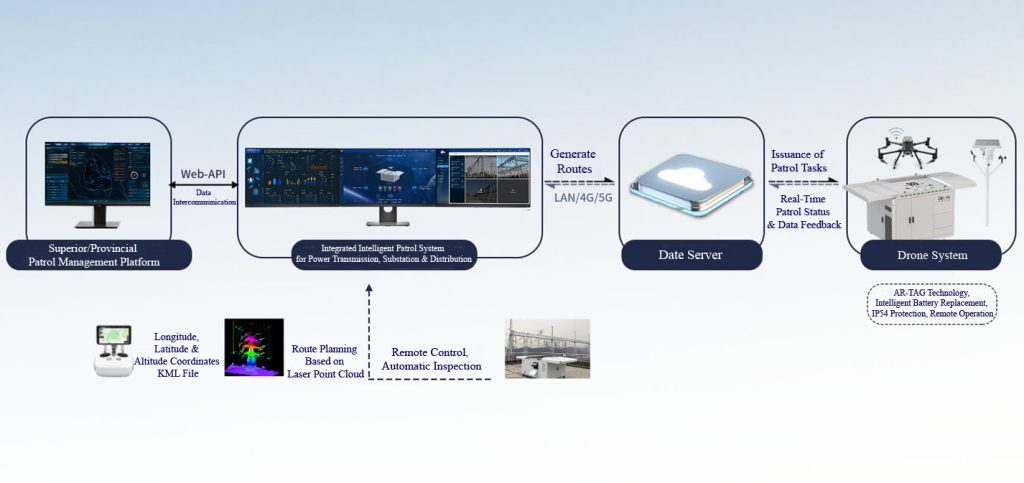

Unmanned Intelligent Power Inspection Solution
Multi Drone Dock Monitoring and Management
Drone Monitoring and Management
Intelligent Flight Environment Judgment
Operation Outcome Management
Drone System
Innoflight Automatic Flight System

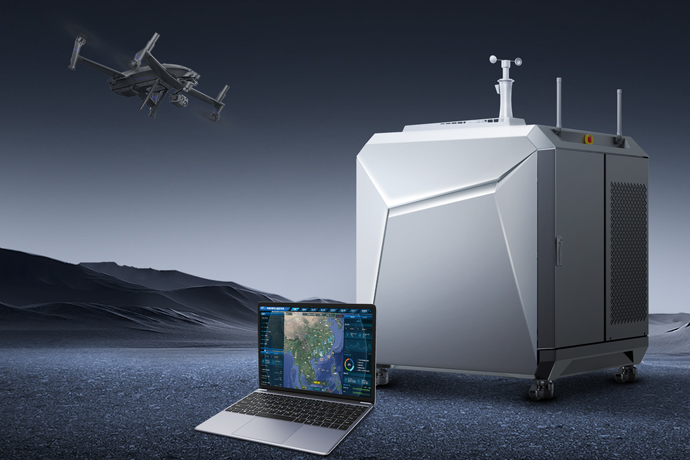

The Innoflight automatic flight system is built by the C60 industry drone that combines the advantages of fixed-wing and multi-rotor, M710 drone docking station and drone cloud platform. This system allows drones to have a wider inspection range, more flexible operation, and higher mapping accuracy, and can easily cope with high-frequency, multi-task fusion application scenarios.
C60 Industrial Drone
M710 Drone Docking Station
Drone Cloud Platform
